Practical guide for selecting the panel for a new generator set or for updating the panel on an existing genset
>> Download NEW CATALOGUE of AUTOMATIC and AMF/ATS PANELS for generator sets
Inmesol’s engineering and marketing departments have prepared a guide that makes it easier to select the electrical panel needed by the genset according to its power and purpose.
The aim of this catalogue is to show the different types of automatic control and AMF/ATS panels that INMESOL manufactures for the generator sets’ most common applications, including parallel applications.
CONTENT OF THE CATALOGUE:

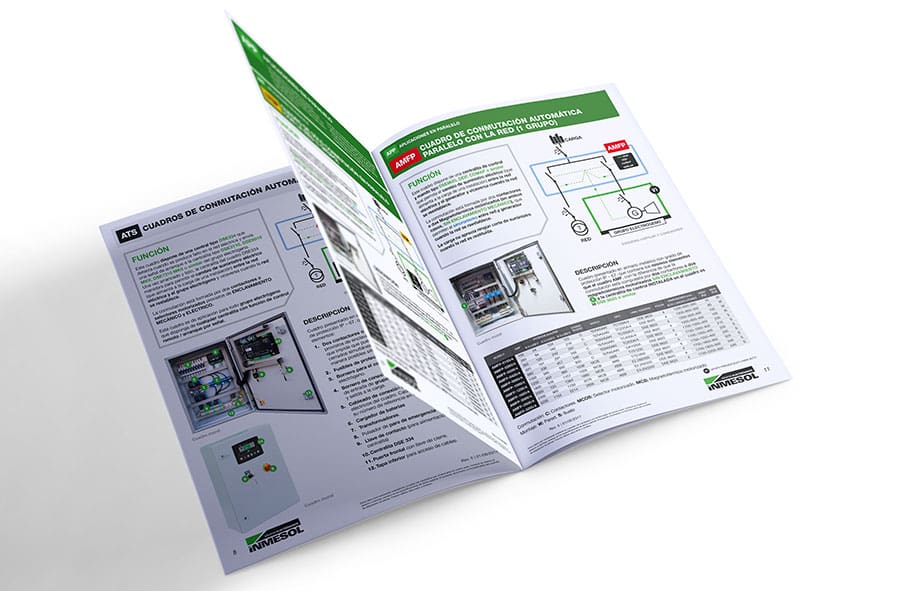

Features of the panels and their components
The different features of the panels, as well as a brief description of their components, are detailed here.
Electric diagrams and connections infographics.

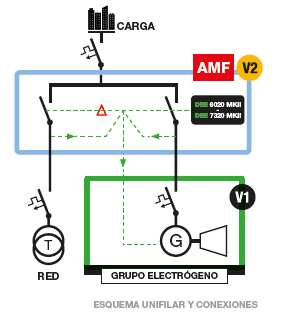

In order to make it easier to understand the features of each type of panel, electric diagrams and connections infographics have been used. They clearly show how all the elements of the installation are interrelated: generator set, automatic and AMF/ATS panel, mains (if present) and charging.
Models of the different panels and technical information about them.

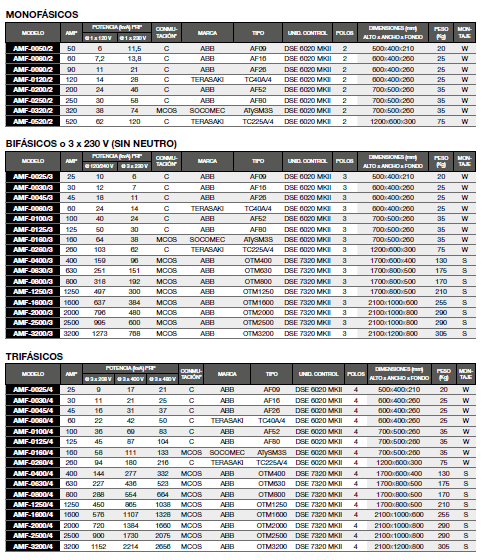

Different tables show all the panel models specifying their amperages, power at different voltages, types of change over switch, dimensions, weight, etc.
Parallel applications
Description of the characteristic panels for parallel applications between a generator set and the mains, parallel applications between several generator sets or parallel applications between several generator sets and the mains.
Examples of frequently requested applications.
This section provides a schematic overview with examples of several frequently requested applications and that can be solved by combining the standard panels.
Control units

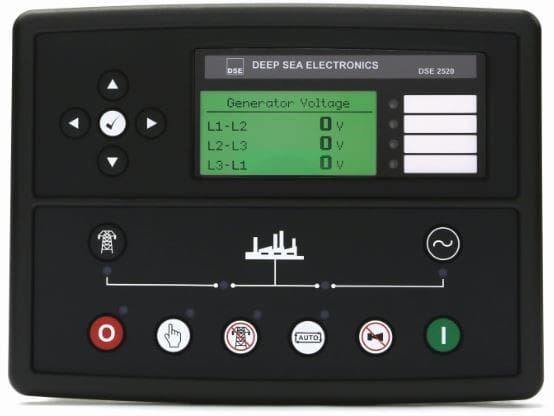

The catalogue offers a brief but precise description of the control and protection units used in the panels, the smart part that manages all the control commands of the generator set, as well as monitoring the parameters of the proper functioning of the engine.
Optionals and accessories

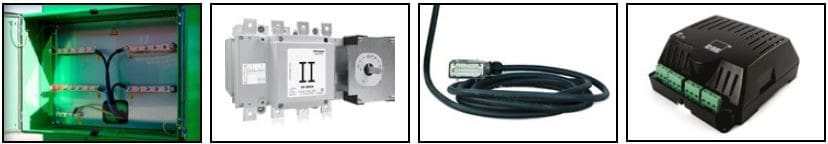

Finally, the catalogue offers a wide range of optionals and accessories that increase the wide range of possibilities that a generator set can offer in the different applications or uses.
We hope that you will find this catalogue/guide useful and that it will help you broaden your knowledge about the possibilities offered by generator sets thanks to their technology.
