We illuminate your projects with efficiency and simplicity
.
We offer a wide selection of portable lighting towers, which are distinguished by their simplicity, efficiency and comfort. Their main purpose is to facilitate the work in any type of installation.

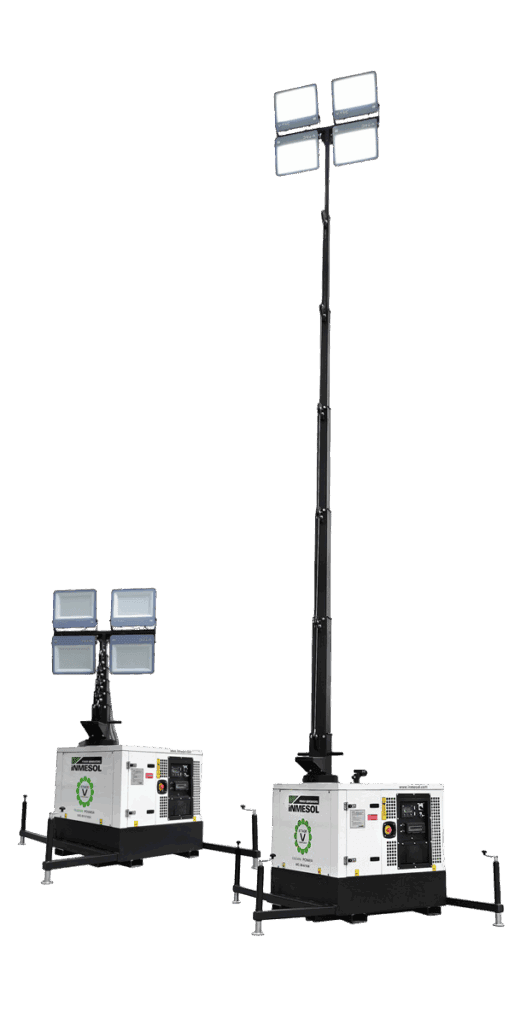

FIND YOUR LIGHTING TOWER
IT-01
Main data:
Weight and dimensions (without generator) (long x wide x high)
Weight: 880 kg
Transport dimensions (mm): 4221 x 1533 x 2213
Working dimensions (mm): 4221 x 3913 x 9300
Lifting kit
Total height in working position: 9.3 m
Lifting system: hydraulic
Lights swivel around the vertical axis: 355º
Swivel system: manual
Lighting kit
Lights swivel around the horizontal axis: 120-140º
Swivel system: electric
6 quartz-iodine lights 1500 W each or 6 metal halide lights 400 W each. LED versions available.
Trailer
With ring hitch.
Wheels with P175/80 R13 tyres.
Adjustable stabilizers.
Jockey wheel.
IT-05
Main elements:
Weight and dimensions (long x wide x high)
Weight: 760 kg
Transport dimensions (mm): 2520 x 1100 x 2610
Working dimensions (mm): 3150 x 2150 x 9000
Single-phase, 6kVA built-in Diesel generator
Engine: Water cooled Kubota D1105, 8.4 kWm @ 1500 rpm
Fuel tank: 98.5 L
Voltage: 230 V
Frequency: 50 Hz
Control panel
With controller.
Switch for each couple of lights.
Earth fault protection.
Emergency stop push button.
Lifting kit
Total height in working position: 9 m
Lifting system: manual
Lights swivel around the vertical axis: 355º
Swivel system: manual
IT-06
Main elements:
Weight: 235 kg
Transport dimensions (mm): 1198 x 786 x 2824
Working dimensions (mm): 2042 x 1296 x 7000
Number of lamps x power (each): LED, 4 x 150 W
Power supply (V – Hz): 230 V single phase – 50 Hz
Mast elevation: Manual
Mast rotation: Manual
Angle of rotation: 355º
Generator set: Not included
IT-07
Main elements:
Weight and dimensions (long x wide x high)
Weight: 760 kg
Transport dimensions (mm): 2520 x 1100 x 2610
Working dimensions (mm): 3150 x 2150 x 9000
Single-phase, 2.5 kVA built-in Diesel generator
Engine: Kubota Z482 refrigerado por agua, 3.2 kWm @ 1500 rpm
Fuel tank: 98.5 L
Voltage: 230 V
Frequency: 50 Hz
Control panel
With controller.
Switch for each couple of lights.
Earth fault protection.
Emergency stop push button.
Selector switch for power supply from external source or from the built-in generator.
Auxiliary outlet socket 16 A.
16 A plug for external power supply.
Lifting kit
Total height in working position: 9 m
Lifting system: hidráulico
Lights swivel around the vertical axis: 355º
Swivel system: manual
